Sensor Technology Review: Infrared and Capacitive Activation Systems in Commercial Restrooms

Introduction

Sensor-activated restroom fittings are now baseline expectations in many commercial and institutional projects. For architects, engineers, and specifiers, the question is no longer whether to use sensor technology, but which sensing method and how to detail it correctly within the broader system: water efficiency targets, accessibility, durability, and integration with building controls.

This article reviews two dominant activation technologies used in commercial faucets and flush valves—infrared (IR) and capacitive sensing—from an AEC perspective. Operating principles, design constraints, and performance trade-offs are in focus here alongside how those technologies intersect with ADA accessibility, WaterSense criteria, CALGreen requirements, and ASME/ASSE plumbing product standards. The intent is to support technical decision-making for specifications, not to promote specific products.

Sensor Activation Technologies in Commercial Restrooms

Drivers for Sensor Activation in AEC Projects

From an engineering and architectural perspective, sensor-activated fixtures are commonly selected to:

• Minimizes overall water consumption and support compliance with WaterSense, CALGreen, and related local codes.
• Limitations on the touchpoints to support hygiene policies in healthcare, education, and high-occupancy facilities.
• Provide consistent, predictable flow durations for sizing water supply and drainage systems.
• Enable monitoring and control through using the building management systems (BMS) or through digital plumbing platforms.

These objectives translate into specific design needs: robust sensors that operate reliably over high-duty cycles, clear detection zones that work across user populations, and integration with mixing valves, supply piping, and electrical systems.

Typical Applications

In commercial washrooms, sensor technologies are commonly used for:

• Washroom faucets (public and semi-public).
• Water closet flush valves (flushometers).
• Urinal flush valves.
• Occasionally, ancillary devices such as soap dispensers or pre-rinse stations in foodservice contexts.

For each of these, the choice between infrared and capacitive sensing affects not only the fixture body but also rough-in dimensions, power infrastructure, chase access, and the commissioning process.

Infrared Sensing: Operating Principles and Design Considerations

Basic Operating Principle

Infrared sensing systems for faucets and flush valves generally use one of two approaches:

1. Reflective IR proximity sensing
   • An emitter sends a modulated infrared beam.
   • A receiver detects the reflected signal from an object (typically hands or a user’s body).
   • Control logic compares signal strength and timing to a threshold to determine activation.
2. Time-of-flight or distance-based IR
   • The controller measures the time between emission and detection.
   • Distance thresholds are used to define the detection zone.

In both cases, the sensor electronics drive a solenoid valve or motorized valve that initiates and terminates the water flow or flush cycle.

Detection Zone and User Experience

For design and specification, the sensor’s detection zone is critical:

• Lavatory faucets:
  • Typical effective range is 2–6 inches (50–150 mm) in front of the spout outlet.
  • An excessively wide range can cause nuisance activation from passersby or adjacent lavatories.
  • A very tight range can create usability problems for children, older adults, or wheelchair users with limited reach.
• Flush valves:
  • The detection zone is designed to sense a user’s presence at the fixture and then trigger upon departure.
  • Wrongly oriented or mis-aimed sensors can result in double-flush events or failure to flush.

In specifications, it is useful to require:

• Field-adjustable detection range or factory settings compatible with the room geometry.
• Clear documentation of the sensing zone in shop drawings (elevations/sections), especially where mirrors, glass partitions, or adjacent fixtures may influence reflections.

Environmental Constraints: Reflective Surfaces and Light

Infrared systems are line-of-sight technologies and are sensitive to their optical environment:

• Highly reflective surfaces such as countertops, highly polished stainless steel surfaces, and white fixtures can all contribute to the return of more IR and potentially “trigger” false readings unless the threshold is correctly set.
• Highly dark or matt surfaces, or operators with dark gloves, may cause a non-reflective condition requiring more accurate alignment and greater sensor sensibility.
• Bright sunlight or certain lighting schemes may introduce IR noise, but this is minimized in quality equipment via modulation and filters, and areas such as lobbies and restrooms with exterior glazing should still be factored in in building design.

In practice, this means the architect’s material and lighting selections may indirectly impact the performance of sensors. Such coordination between lighting design, finish schedules, and sensor spec is recommended, especially in signature public spaces.

Durability, Ingress Protection, and Vandal Resistance

In commercial and institutional environments, IR sensor components are exposed to cleaning chemicals, water, aerosols, and vandalism. Key design considerations include:

• Ingress protection: Sensor windows and electronics should be sealed to resist water ingress; specifiers may request compliance with IP ratings where relevant.
• Mechanical robustness: Flush valves and faucets in transportation, stadium, and correctional projects are required to be evaluated for impact resistance and tamper-resistant hardware.
• Sensor window fouling: Soap residue or limescale on the sensor window can degrade performance over the passage of time; product selection needs to consider window placement and accessibility for cleaning.

From a plumbing engineering perspective, it is also important that solenoid valves paired with IR sensors be rated for the building’s supply pressure, water quality, and duty cycle, consistent with applicable ASME/ASSE standards.

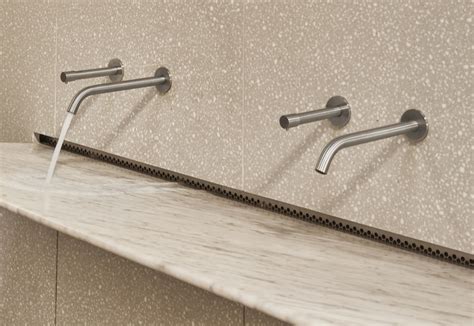

Capacitive Sensing: Operating Principles and Design Considerations

Principle and Hardware

Capacitive sensing systems detect changes in an electric field around an electrode embedded in or behind the fixture body:

• The faucet or a concealed pad acts as a conductive or capacitive element.
• When a user’s hand or body enters the field, the capacitance seen by the sensor changes.
• The controller interprets these changes as an activation event according to thresholds and time filters.

Unlike infrared sensors, capacitive sensors do not necessarily require a visible optical path between the sending and the receiver components. The electrode is masked by non-conductive material such as ceramics, glass, and plastics to enable a fully hidden sensor implementation.

Surface Materials and Form Factors

Because capacitive sensors operate through dielectrics, they offer advantages in projects that prioritize:

• Clean, monolithic surfaces (e.g., solid-surface washplane systems or seamless wall-mounted faucets).
• Architectural finishes where visible sensor windows are undesirable (high-end hospitality, corporate, or civic spaces).

However, the dielectric properties and thickness of the covering material must be consistent with the sensor’s tuning:

• Very thick cladding or variable material thickness can reduce sensitivity.
• High-permittivity materials may alter the effective sensing distance.

These factors should be addressed in submittals and shop drawings, particularly when custom washplanes or integrated vanity systems are being fabricated.

Noise, Grounding, and Plumbing System Interactions

Capacitive sensors are sensitive to electrical noise and grounding conditions:

• Plumbing systems, metal countertops, and mounting brackets can form part of the capacitive network.
• Poor grounding or unexpected conductive paths may increase the system’s “background” capacitance and reduce usable signal margin.
• High humidity or thin films of water on surfaces can increase false activations if the sensor firmware is not tuned for such conditions.

From an engineering point of standard, coordination with the electrical engineer is recommended to:

• Supply of a stable low-voltage power source where required.
• To make sure that proper grounding and bonding of metallic components in accordance with the NEC and local codes.
• To prevent the routing sensor leads in parallel with high-voltage or high-noise conductors where feasible.

Comparative Assessment: Infrared vs Capacitive for AEC Specifications

Reliability and False Activations

In practice:

• Infrared systems
  • Mature, widely used technology with well-understood performance.
  • Prone to optical reflection and direct sunlight exposure, but overall stable when mounted as instructed by the manufacturer.
• Capacitive systems
  • More suitable for concealed or “no visible sensor” designs.
  • More reliant on effective grounding and moisture management, and may have a more rigorous startup procedure for use in the presence of a constant water film or wetting cycle.

IR was once common in high-traffic public restrooms with standard fixtures due to a combination of familiarity and predictable performance. Capacitive filters can also find their use in architectural or minimalistic designs, if the detailing of the filters can be carefully controlled.

Maintenance and Cleaning

Maintenance practices should align with the chosen technology:

• IR sensors require that the sensor window remain reasonably clean; aggressive abrasives may scratch the lens and degrade performance.
• Capacitive systems are more tolerant of surface cleaning but more sensitive to long-term moisture or cleaning agents that alter surface conductivity.

In Division 22 specifications, it is helpful to require:

• Manufacturer-provided O&M instructions suitable for the facility’s cleaning chemicals and frequencies.
• Diagnostic indicators (LEDs or equivalent) to assist facility staff in troubleshooting power, sensor, or solenoid issues.

Applicability by Project Type

Some general patterns across project types:

• Healthcare: Consistent sensing and predictable shutoff are critical. IR is widely used; capacitive may be chosen for flush, cleanable surfaces in OR or ICU-adjacent areas if validated by mock-ups.
• Education: Vandal resistance and robustness are paramount. IR with tamper-resistant housings and protected sensor windows is common.
• Airports and transportation: Heavy use and high turnover favor IR systems with conservative detection ranges and easily replaceable solenoid cartridges.
• Hospitality or premium office: Capacitive systems may be used to support design-driven washplanes and minimalist fixtures, assuming maintenance staff are trained on the technology.
• Correctional facilities: More specialized ligature-resistant or vandal-resistant fixtures might include a combination of both, although ultimately it comes to containing, being durable, and adhering to institutional design standards.

Codes, Standards, and Certification Context

ADA Accessibility Considerations

The 2010 ADA guidelines for accessible design pertain to operable parts and lavatories/fixtures, not particular sensor technologies. The relevant guidelines include:

• Operable parts (Section 309): Controls must be capable of operation without tight grasping, pinching, or twisting of the wrist, requiring not more than 5 lbf (22.2 N) of force for activation. Sensor-activated faucets will automatically meet the “no tight grasp/pinch/wrist twist” criterion provided the activation zone is accessible.
• Lavatories and sinks (Section 606):
  • Clear floor space and knee/toe clearance must be provided.
  • Rim or counter heights must not exceed specified limits.
  • Controls (including sensors) must be within the allowable reach ranges for both forward and side reach.

For flush valves (Sections 604 and related provisions), sensor location and mounting height must allow a seated user to be detected and able to use the fixture effectively.

Implications for specification and detailing:

• Make sure that the sensor activation zones are reachable for wheelchair users and children where possible.
• Make sure to not place sensors in locations where a user in a wheelchair would be outside the detection zone, such as too far back on deep countertops.
• Require manufacturer shop drawings showing detection zones relative to ADA-compliant clearances and reach ranges.

WaterSense and Water Efficiency

The U.S. EPA WaterSense program sets performance criteria for high-efficiency plumbing fixtures, typically including:

• Public lavatory faucets with a maximum flow rate (commonly 0.5 gpm at 60 psi).
• Limits on product of flow rate and time to make sure that the actual water delivered per hand wash event is controlled.

While WaterSense does not specify sensor technology, sensor-activated faucets can be used in an effort to ensure that:

• Automatic shutoff after a defined run time.
• Controlled flow duration irrespective of user behavior (users cannot leave the faucet running indefinitely).

For specifiers, consider:

• Mandating that senator-activated lavatory faucets used with public-commercial restrooms must be WaterSense rated where necessary.
• Validating that time-out values and their activation logic (such as post-run lockout) are in line with water budgeting computations and/or fixture unit values used in plumbing.

CALGreen and Regional Code Overlays

In California projects, the CALGreen code (California Green Building Standards Code) sets mandatory and voluntary measures for indoor water use. For restrooms, this typically includes:

• Maximum flow rates for public lavatory faucets (often aligned with or more stringent than national baselines).
• Requirements for high-efficiency urinals and water closets in many occupancies.

Sensor-activated flush valves and faucets are not mandatory per se, but are often the practical means to:

• Achieve targeted water use levels under real operating conditions.
• Support measurement and verification strategies where fixture usage data is collected.

In specifications for California or similar jurisdictions:

• Confirm that selected sensor-activated fixtures meet CALGreen flow and flush volume limits, including any local amendments (e.g., city or campus-specific standards).
• Coordinate sensor fixture selection with water supply pressure ranges and pipe sizing assumptions used to satisfy CALGreen and local plumbing codes.

ASME / ASSE Plumbing Product Standards

Infrared and capacitive sensor fixtures must also comply with relevant product standards. For example:

• ASME A112.18.1 / CSA B125.1 – Plumbing supply fittings, covering performance and safety requirements for faucets, including sensor-operated types.
• ASME A112.19.x series – For vitreous china and other fixtures used with sensor flush valves.
• ASSE 1037 – Performance requirements for flushometer valves, including sensor-operated models.
• ASSE 1070 / ASME A112.1070 – For thermostatic mixing valves used to limit hot water temperature to reduce scald risk in lavatory applications.

Specifications should generally require:

• Compliance with applicable ASME/ASSE/CSA standards listed in Division 22.
• Third-party certification (e.g., listing by recognized testing laboratories) for both the fixture and any integral thermostatic or mixing components.

These requirements are independent of whether the activation technology is infrared or capacitive but are essential for code compliance and risk mitigation.

Power, Controls, and System Integration

Power Options: Battery, Hydrogenerator, and Low-Voltage

Sensor systems are typically powered via one or more of the following:

• Battery power
  • Common in retrofit scenarios or where running power is difficult.
  • Battery life claims (e.g., X years at Y activations per day) should be evaluated against the facility’s actual usage profile.
  • Specifications may require low-battery indication and easily accessible battery compartments.
• Hydrogenerator-based systems
  • Use water flow to charge a capacitor or rechargeable battery.
  • Best suited for high-use fixtures where sufficient flow events occur to maintain charge.
• Low-voltage hardwired systems (e.g., 6V–24V)
  • Suitable for new construction and large facilities where centralized power supplies and control boxes are acceptable.
  • Require coordination with electrical design and access to transformers or power packs in ceiling or chase space.

Selection should be coordinated with maintenance policies, access to ceiling spaces, and any BMS integration strategies.

Control Boxes, Mixing Valves, and Scald Protection

Many commercial sensor faucets and flush valves rely on remote or local control boxes that integrate:

• Solenoid valves.
• Mixing valves or thermostatic mixing devices (to satisfy ASSE 1070 where required).
• Manual override controls for maintenance.

From a design and detailing standpoint:

• Provide adequate access panels and service clearances in casework or walls.
• Ensure the mixed supply temperature is controlled by an appropriately listed thermostatic device when serving public lavatories, consistent with plumbing code and scald-prevention policies.
• Coordinate with Division 08/10 casework and wall systems to avoid burying control boxes in inaccessible locations.

Integration with BMS and Digital Plumbing Platforms

In advanced projects, sensor fixtures may be connected (typically via low-voltage control networks or wireless gateways) to:

• Report activation counts and usage profiles.
• Detect abnormal conditions (continuous activations, potential leaks, or stuck valves).
• Allow remote adjustment of time-outs, detection ranges, or lockout schedules (e.g., for facilities closed overnight).

For specifiers, this can be addressed by:

• Including a requirement that sensor-operated fixtures or their controllers be compatible with the facility’s BMS protocol, if integration is desired.
• Identifying network and power infrastructure in coordination drawings rather than treating sensor fixtures as isolated devices.

This level of integration is more common in healthcare, higher education, airports, and institutional campuses with centralized facility management teams.

Detailing, Coordination, and Specification Tips

Architectural Coordination

Key architectural coordination items consist of the followings:

• Mounting heights and ADA reach ranges for sensor zones at restrooms and WC/urinal flush valves.
• Mirror and partition locations relative to IR sensors to prevent reflections from triggering false activations.
• Countertop overhangs and basin shapes to ensure that the sensor zone is directly above the effective handwashing area, not over dry countertop.
• Access provisions (panels, removable fronts, ceiling hatches) for control boxes, transformers, and piping related to sensor systems.

Mock-ups can be valuable for complex washplane or integrated vanity concepts using capacitive sensors.

MEP Coordination

From a plumbing and mechanical perspective:

• Verify that solenoid valves and flushometers will be compatible with available water pressure and quality, such as hardness and debris.
• Include upstream strainers or filters if manufacturer recommends; indicate location and access on drawings.
• Coordinate with the electrical team to ensure documentation of access for power supplies, transformers, and low-voltage wire routes.

Where centralized mixing systems or tempered water loops are used, make sure to confirm that:

• Local thermostatic controls at fixtures are uniform with the system design.
• Temperature limits and response times align with ASSE 1070 or relative standards.

Division 22 Specification Considerations

Division 22 (typically 22 42 xx for plumbing fixtures) is where the performance requirements for sensor technology should be clearly articulated. Suggested elements include:

• Identification of acceptable activation technologies (e.g., infrared, capacitive) and where one is specifically required.
• Requirements for:
  • Adjustable detection range.
  • Maximum run time and default time-out settings.
  • Compliance with WaterSense where applicable.
  • Compliance With ADA reach and operable parts requirements by fixture configuration.
  • Compliance with ASME A112.18.1/CSA B125.1 faucet requirements and ASSE 1037 requirements of flush valves.
• Power requirements (battery, hydrogenerator, or low-voltage) and expectations for battery life or service intervals.
• Requirements for submittals documenting:
  • Detection zone diagrams.
  • Installation details illustrating ADA-compliant clearances.
  • Control box locations and access.
  • Integration capabilities with BMS, if required.

Clear language in Division 22 helps avoid substitutions that may compromise ADA compliance, water efficiency, or system integration objectives.

Conclusion

Infrared and Capacitive Sensing each represent valid methods of accomplishing touch-free functionality in institutional restrooms, but they also present differing design considerations.

• Infrared excels in applications where proven reliability, clear detection geometry, and straightforward maintenance are priorities, and where visible sensor windows are acceptable.
• Capacitive sensing is compelling when concealed sensors and seamless surfaces are architectural drivers, provided that grounding, moisture management, and commissioning are carefully handled.

The challenge for the architect/engineer is to look at sensor specification in a more holistic technical context, which would include: general technical specifications such as ADA reach/compliance, WaterSense or CalGreen water-use restrictions, ASME/ASSE product certification, durability, vandal resistance, or interface with power or control packages.

By incorporating these considerations into early design, detailing, and Division 22 specifications, project teams can deliver restrooms that are not only touchless, but also robust, accessible, and aligned with long-term operational goals.
